Improve Cold-Heading Steel Wire Quality with Pino Phosphating Solutions – On-Site Case Study

Pino Phosphating Solution – On-Site Service Record for Cold-Heading Steel Wire Customers

In cold-heading steel wire production, phosphating is a critical step that directly affects wire drawing, final part forming quality, and tool life. Yet many manufacturers struggle with uneven phosphate coatings, excessive sludge buildup, and poor cold-heading stability.

This real-world case study shows how Pino’s systematic approach solved these problems for a leading customer.

1. Customer Background

• Materials processed: 10B21, 35K, 40Cr, 08Al, Q195, Q235, SCM435, SCM440

• Diameter range: Φ2.0 – Φ36 mm

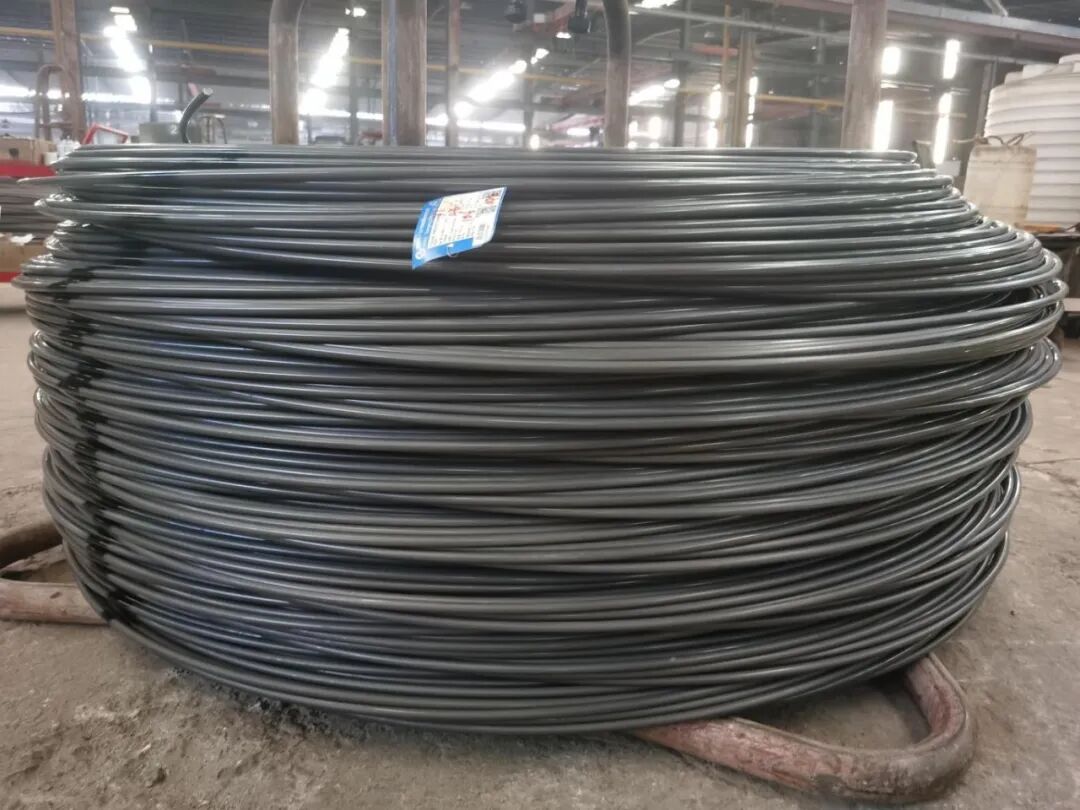

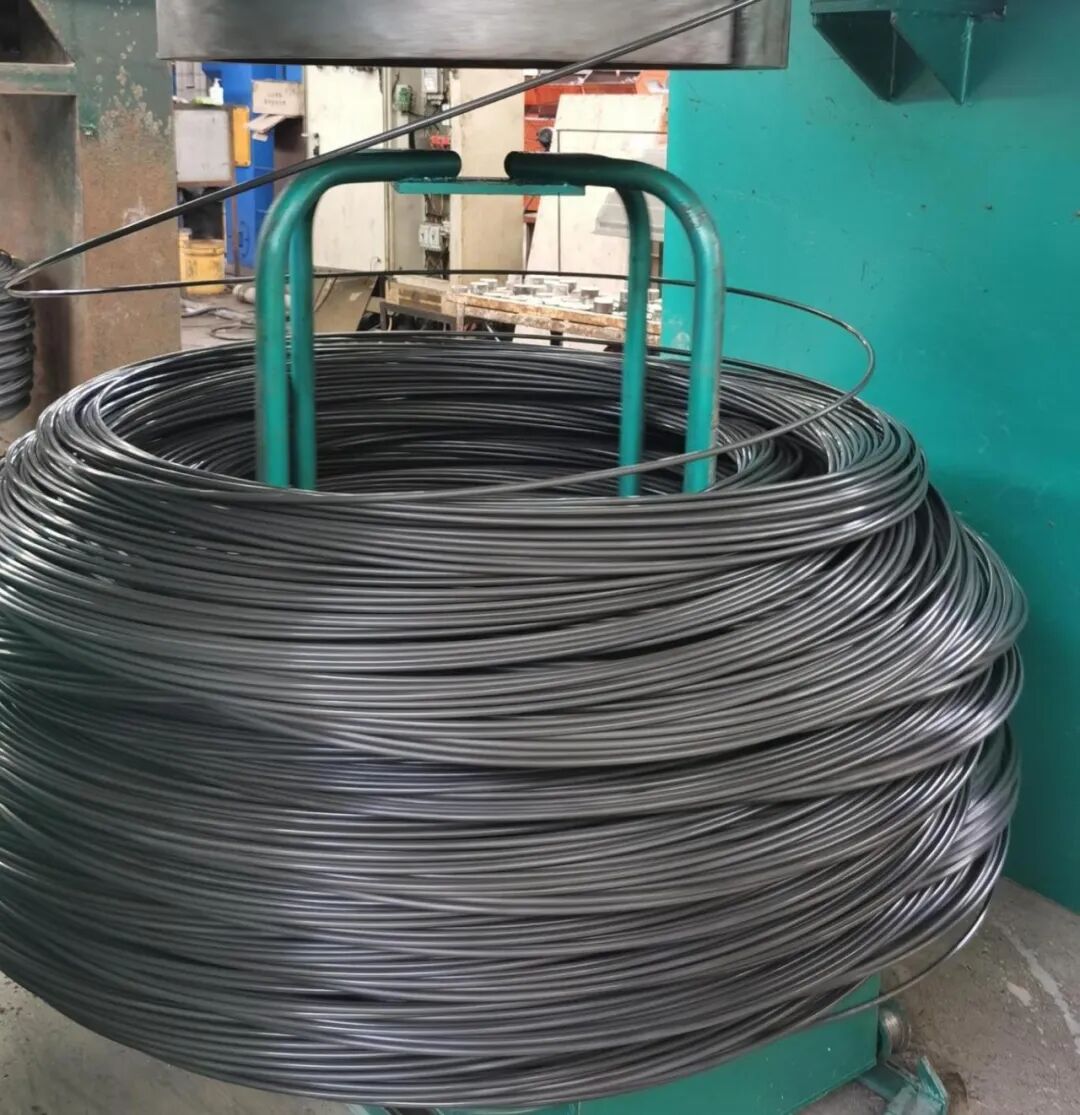

• Application: Cold-heading steel wire

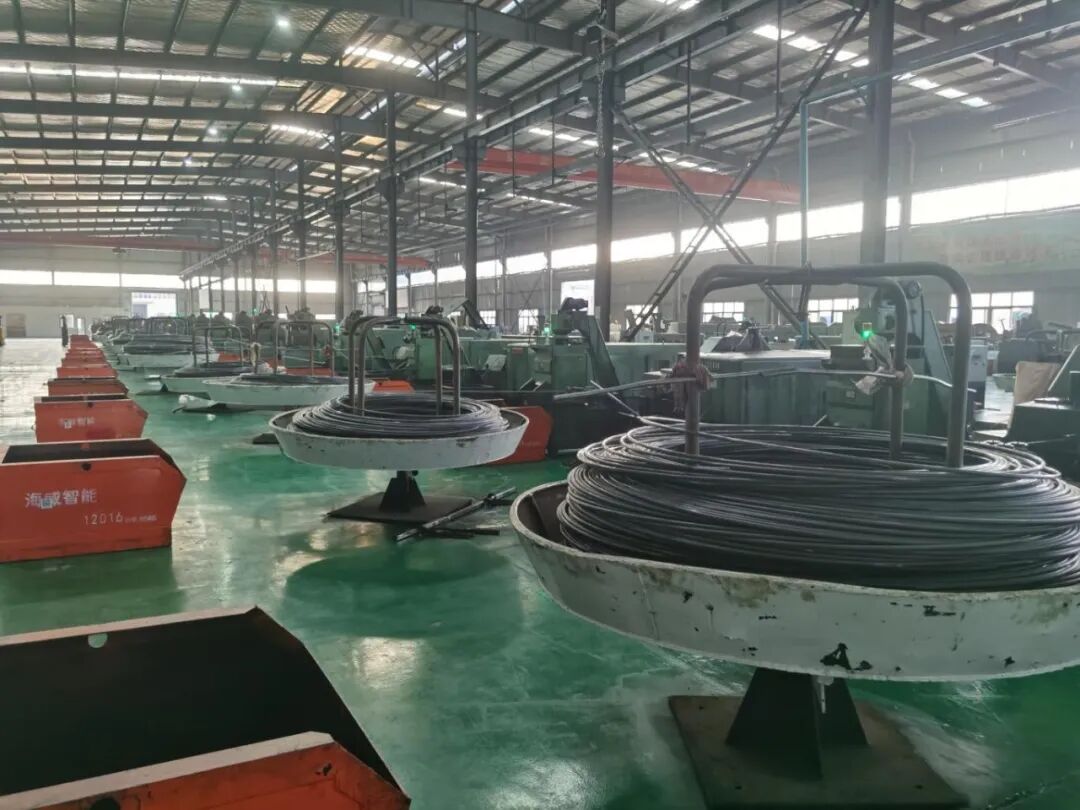

• Line type: Immersion-type phosphating line

• Challenge: Maintaining stable phosphating performance across diverse steel grades and sizes

2. Initial Problems Identified

After on-site audits and technical discussions, we identified three core issues:

• Excessive phosphating sludge – rapid sediment accumulation required frequent tank cleaning, causing production interruptions.

• Non-uniform phosphate coating – surface mottling, thickness variation, and inconsistent coverage.

• Downstream quality fluctuations – unstable coating led to rejects in subsequent cold-heading operations.

3. Pino’s Integrated Solution

We didn’t just replace the chemical product – we redesigned the entire process for long-term stability.

① Phosphating System Upgrade
We introduced the Pino 900B series phosphating solution, formulated to produce denser, more uniform coatings while significantly reducing sludge formation at the source.

② Full-Process Coordination
Beyond phosphating and saponification, we worked with the customer to optimize:

• Pickling parameters (acid concentration, time, temperature)

• Surface cleaning quality (rinsing and activation)
  Because pre-treatment quality sets the ceiling for phosphating performance.

③ Continuous On-Site Technical Support
Our field engineers provided ongoing follow-up:

• Fine-tuned pickling and rinsing procedures based on real-time data

• Monitored coating weight, thickness, and morphology quantitatively

• Established control limits for each process stage to standardize operations

This shifted our relationship from “product supplier” to “process co-manager.”

4. Measurable Results After Implementation

After a stable trial period, the customer achieved:

• Sludge reduction – manual cleaning frequency dropped to ~once per month, with sludge volume significantly lower than other lines on site.

• Enhanced production stability – the line became the preferred choice for producing wire for external sales, due to its consistent quality.

5. Customer Testimonial

“Pino’s product performance is reliable, but what truly sets them apart is their technical engagement. We communicate frequently and continuously fine-tune the process together. It’s no longer a vendor relationship – it’s true technical collaboration.”

Looking for a stable phosphating solution for your cold-heading wire line?
Contact Pino today to discuss your specific material mix and production challenges.
